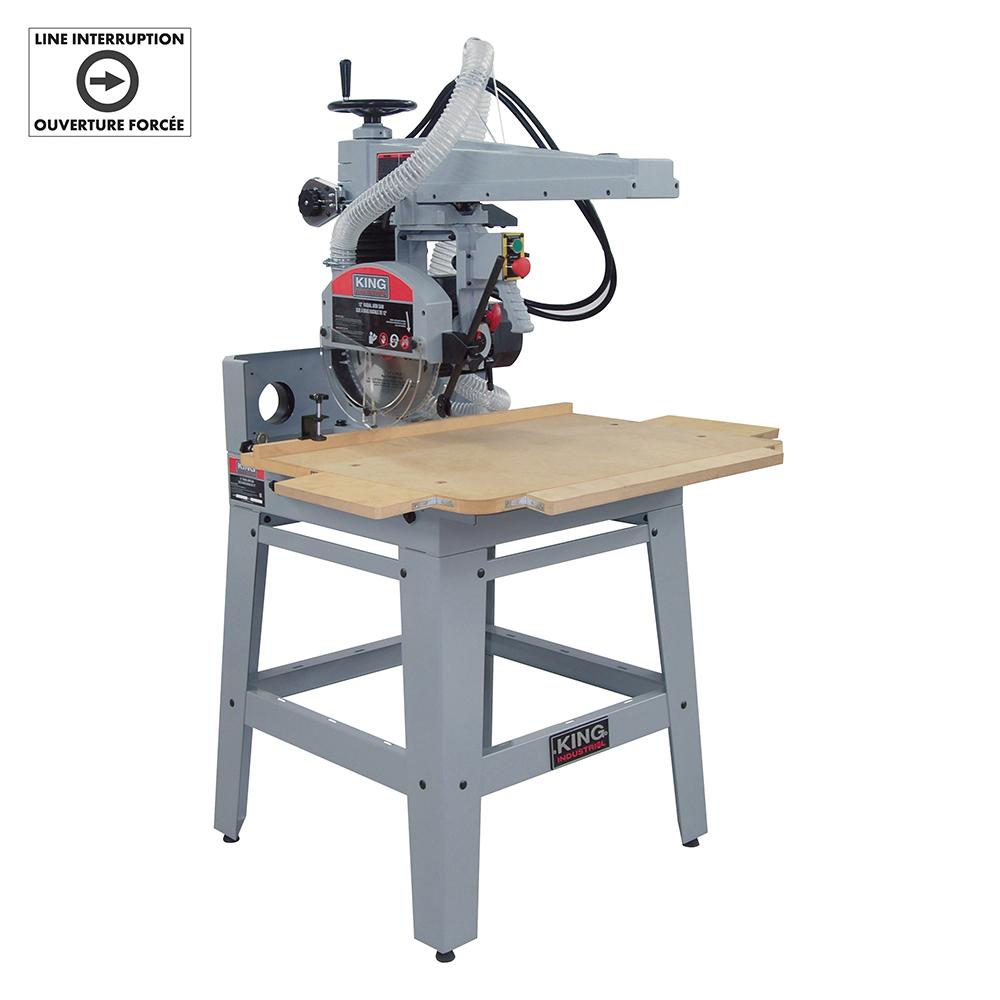

12" Radial arm saw

12" Radial arm saw

Call For Price
  • Part Number: KC-12RAS
  • UPC:
  • Availability: Call for availability
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
12'' Radial arm saw
Specifications
Details
Industrial Category:
Power Tools
Industrial Subcategory:
Power Saws and Accessories
Industrial Subtype:
Table,Scroll and Track Saws
Category Level 4:
Corded Table Saws
Assembled dimensions (LxWxH) / Weight:
35-3/8'' x 43'' x 71'' / 395 lbs
Blade arbor (with 1" bushing):
5/8''
Blade diameter:
12''
Dado capacity:
13/16''
Height of stand:
36-3/4''|36-3/4''
Item Length (inches):
35.375
Item Quantity:
1
Item Weight (lbs):
395 lbs
Maximum chisel stroke:
16''
Maximum depth of cut:
2'' / 3''
Maximum depth of cut at (10"/12"):
2'' / 3''
Maximum rectangular dimension:
26-3/8''
Maximun pump capacity:
35-3/8'' x 27-1/2''
Moteur:
2 HP, 8.5 Amp.
Overall width across forks:
30'' x 37-3/4'' x 34'' / 485 lbs
Product Series:
KING INDUSTRIAL
Spec 01:
Blade diameter: 12"
Spec 02:
Blade arbor (with 1" bushing): 5/8"
Spec 03:
Maximum depth of cut at (10"/12"): 2" / 3"
Spec 04:
Maximum depth of cut at 45˚ (10"/12"): 2" / 3"
Spec 05:
Maximum crosscut capacity: 16"
Spec 06:
Maximum rip capacity: 26-3/8"
Spec 07:
Dado capacity: 13/16"
Spec 08:
MDF table size: 35-3/8" x 27-1/2"
Spec 09:
Height of table from floor: 36-3/4"
Spec 10:
Height of table from floor: 36-3/4"
Spec 11:
Motor: 2 HP, 8.5 Amp.
Spec 12:
Voltage: 220V, 1 phase, 60 Hz
Spec 13:
Assembled dimensions (LxWxH) / Weight: 35-3/8" x 43" x 71" / 395 lbs
Spec 14:
Package dimensions (LxWxH) / Weight: 30" x 37-3/4" x 34" / 485 lbs
UNSPSC Number:
27112743
UPC Number:
7 72995 01447 7
Variable speeds (wood):
220V, 1 phase, 60 Hz
Other Details
Adjustable return spring retracts motor and carriage
Automatic built-in mechanical blade brake system
Includes 12" negative rake blade, adjustment wrenches and hex. keys
Industrial rated radial arm saw has the versatility to Crosscut, bevel cut, miter cut and swivel to a rip position to cut down panels precisely and accurately
Magnetic safety switch with keyed lock preventing unauthorized use of the radial arm saw
Oversized MDF table top
Powerful 2 HP, 220V single phase motor
Precision indexing with positive stops at 22.5˚, 45˚ and 90˚ for accurate bevel cuts
Two 4" dust chute for dust collector hook-up
