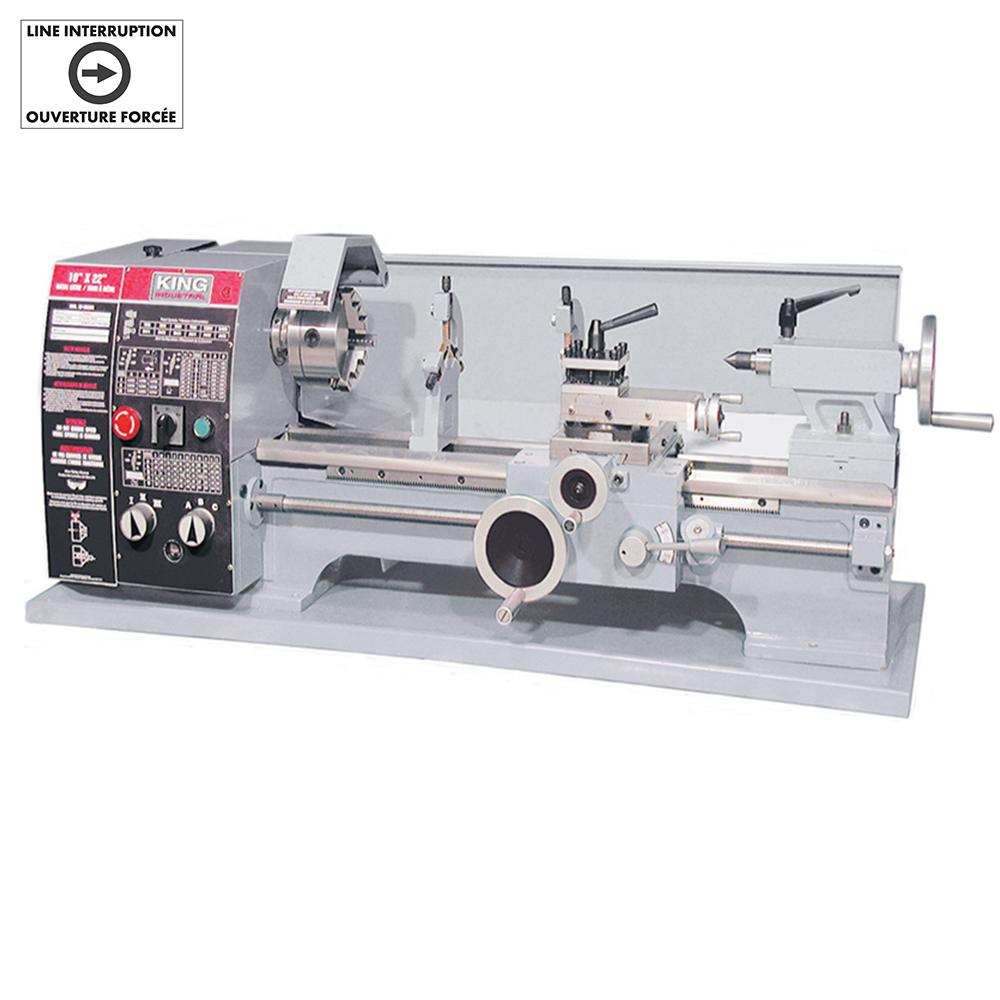

10" x 22" Metal lathe

10" x 22" Metal lathe

Call For Price
  • Part Number: KC-1022ML
  • UPC:
  • Availability: Call for availability
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
10" x 22" Metal lathe
Specifications
Details
Industrial Category:
Power Tools
Industrial Subcategory:
Finishing Tools
Industrial Subtype:
Specialty Finishing Tools
Category Level 4:
Lathe Machine and Accessories
Assembled dimensions (LxWxH) / Weight:
50'' x 23'' x 19'' / 360 lbs
Distance between centers:
22''
Item Length (inches):
50
Item Quantity:
1
Item Weight (lbs):
360 lbs
Moteur:
12 Amp.
Package dimensions (LxWxH) / Weight:
49'' x 26-3/8'' x 21-3/8'' / 440 lbs
Product Series:
KING INDUSTRIAL
Spec 01:
Distance between centers: 22"
Spec 02:
Swing over bed: 10"
Spec 03:
Spindle bore: 1"
Spec 04:
Swing over cross slide: 6"
Spec 05:
Taper in headstock: MT #4
Spec 06:
Taper in tailstock: MT #3
Spec 07:
Width of bedways: 6"
Spec 08:
Total travel of cross slide: 6-3/8"
Spec 09:
Total travel of top slide: 4-1/4"
Spec 10:
Spindle speeds: 6 (150-2,400) RPM
Spec 11:
Thread cutting: 24 (8-72 TPI) 18 (.25-3mm)
Spec 12:
Motor: 12 Amp.
Spec 13:
Voltage: 110V, 1 phase, 60 Hz
Spec 14:
Assembled dimensions (LxWxH) / Weight: 50" x 23" x 19" / 360 lbs
Spec 15:
Packaging dimensions (LxWxH) / Weight: 49" x 26-3/8" x 21-3/8" / 440 lbs
Spindle:
1''
Spindle speed:
6 (150-2,400) RPM
Swing over base:
10''
Swing over bed and carriage:
6''
Tank size:
MT #4
Taper in spindle bore:
MT #3
Thickness:
24 (8-72 TPI) 18 (.25-3mm)
Total surface of work table:
6-3/8''
Total travel of cross slide:
4-1/4''
UNSPSC Number:
23242300
UPC Number:
7 72995 00276 4
Variable speeds (wood):
110V, 1 phase, 60 Hz
Width of bed:
6''
Other Details
Comes with 5"-3 jaw chuck, 6-1/2"-4 jaw chuck, imperial and metric gears, 4 ways tool post, steady rest, follow rest, 8" face plate, thread chasing dial indicator, MT#3 dead center, full length splash guard, tool box, chuck key and hex.l keys
Guideway and gears in headstock are all hardened and precision ground
Line interruption switch system needs a restart after a power failure
Powerful 1 HP Motor
Safety guard with limit switch protection
