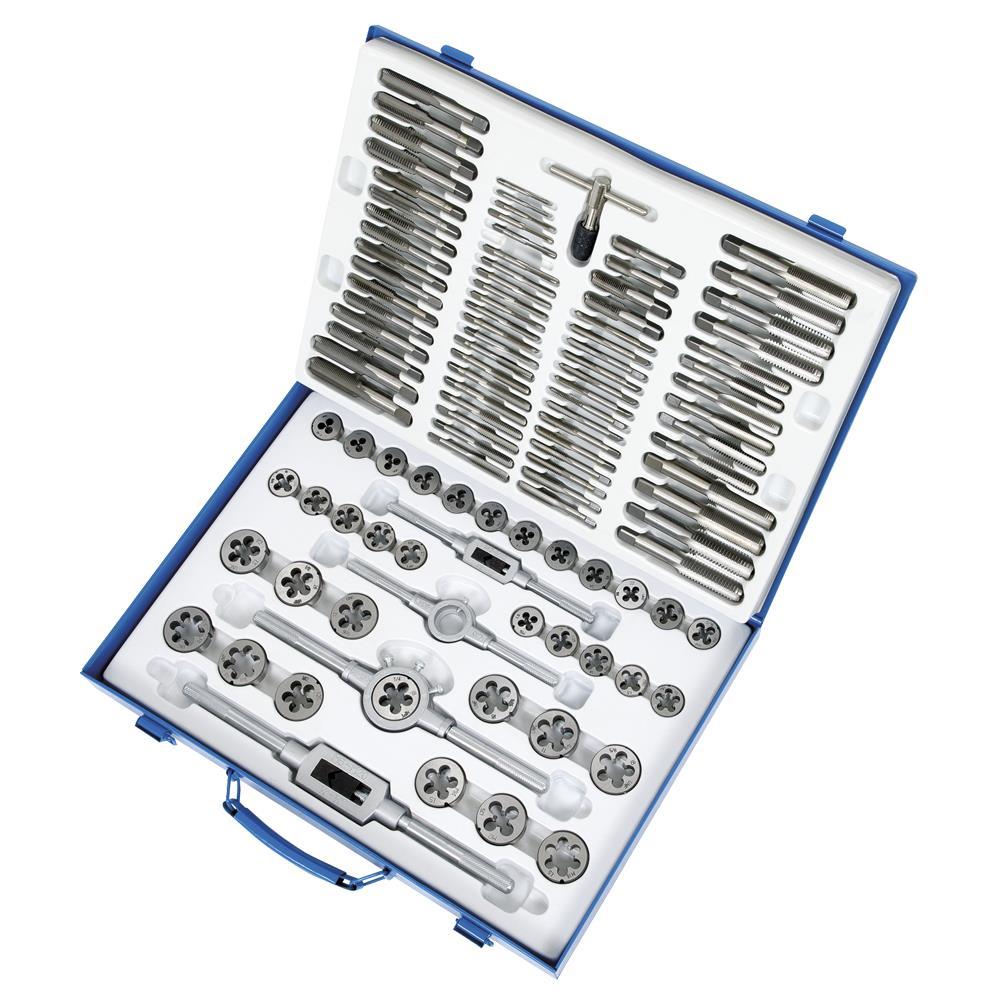

Tap and Die Sets (530120)
by Jet - CA
Product Specification
Item #
530120
Dimensions
Height: 1.95"
Width: 16.50"
Additional product details
Vendor Item #
530120
Industrial Category
Machining
Industrial Subcategory
Threading
Industrial Subtype
Tap and Die Sets
Brand
JET
Country of Origin
CN
Die Handle Outside Diameter (Metric)
M25
Die Handle Outside Diameter (SAE)
1"
Die Handle Outside Diameter Metric
M25
Die Handle Outside Diameter SAE
1"
Die Material
9 SiCr Alloy Steel
Each Depth (in.)
1.95
Each Length (in.)
17.65
Each Qty.
1
Each Weight (lb)
16.1950
Each Width (in.)
16.50
Harmonized Tariff Code
8207.40.00.10
HTS (Harmonized Tariff Schedule) Code
6805.10.00.00
Includes
Plug Tap|Bottom Tap
Inner Pack Qty.
0
Item Length (inches)
17.65
Item Length inches
17.65
Item Quantity
1
Item Weight (lbs)
16.1950
Item Weight lbs
16.20
Master Pack Code
10059629861667
Master Pack Depth (in.)
4.73
Master Pack Length (in.)
18.12
Master Pack Qty.
2
Master Pack Weight (lb)
33.9900
Master Pack Width (in.)
13.40
Measurement Standard
SAE/Metric
Model Number
TD110A
Number of Pieces
110
Order Unit Of Measure
EA
Package Height inches
9.06
Package Length inches
17.73
Package Quantity
2
Package UPC
10059629817756
Package Weight lbs
33.99
Package Width inches
13.4
Performance Level
Premium
Quantity
1
Rockwell Hardness (HRC)
HRC 55-59
Storage Type
Metal Case
Tap Material
9 SiCr Alloy Steel
Tap Wrench Type
T-Handle|Adjustable
Thread Size (Metric)
M18 x 1.5mm|M14 x 1.5mm|M12 x 1.25mm|M11 x 1.5mm|M12 x 1.75mm|M10 x 1.5mm|M10 x 1.0mm|M8 x 1.25mm|M6 x 1.0mm
Thread Size (SAE)
9/16"-18NF|9/16"-12NC|5/8"-18NF|5/8"-11NC|3/4"-16NF|3/4"-10NC|1/8"-18NPT|1/4"-32NF|#12-24NC|#10-32NF|#10-24NC|#8-32NC|#6-32NC|#4-40NC|7/16"-20NF|7/16"-14NC|5/16"-24NF|5/16"-18NC|3/8"-24NF|3/8"-16NC|1/
Thread Size Metric
M18 x 1.5mm|M14 x 1.5mm|M12 x 1.25mm|M11 x 1.5mm|M12 x 1.75mm|M10 x 1.5mm|M10 x 1.0mm|M8 x 1.25mm|M6 x 1.0mm
Thread Size SAE
9/16-18NF,9/16-12NC,5/8-18NF,5/8-11NC,3/4-16NF,3/4-10NC,1/8-18NPT,1/4-32NF,#12-24NC,#10-32NF,#10-24NC,#8-32NC,#6-32NC,#4-40NC,7/16-20NF,7/16-14NC,5/16-24NF,5/16-18NC,3/8-24NF,3/8-16NC,1/8-27NPT,1/4-28NF,1/4-20NC,1/2-20NF,1/4-24NF
Thread Type
NPT - National Pipe Thread|NF - National Fine|NC - National Coarse
UNSPSC
23241615
UOM
EA
UPC
059629817759
UPC Code
059629861660
Manufactured By
Jet - CA
Other Details:
- Hex die stock: 1
- One of each: plug tap, hex die 3mm-0.50, 3mm-0.60, 4mm-0.70, 4mm-0.75, 5mm-0.80, 5mm-0.90, 6mm-0.75, 6mm-1.00, 7mm-0.75, 7mm-1.00, 8mm-1.00, 8mm-1.25, 10mm-1.25, 10mm- 1.50, 12mm-1.50, 12mm-1.75, 1/8-27npt
- Pitch gauge: 1 metric thread
- Screwdriver: 1 slot
- Tap wrench: 1 long handle adjustable 1 T-handle 1/16-3/16 shank taps
