KCH Series Chain Hoists
Image may not reflect selected features

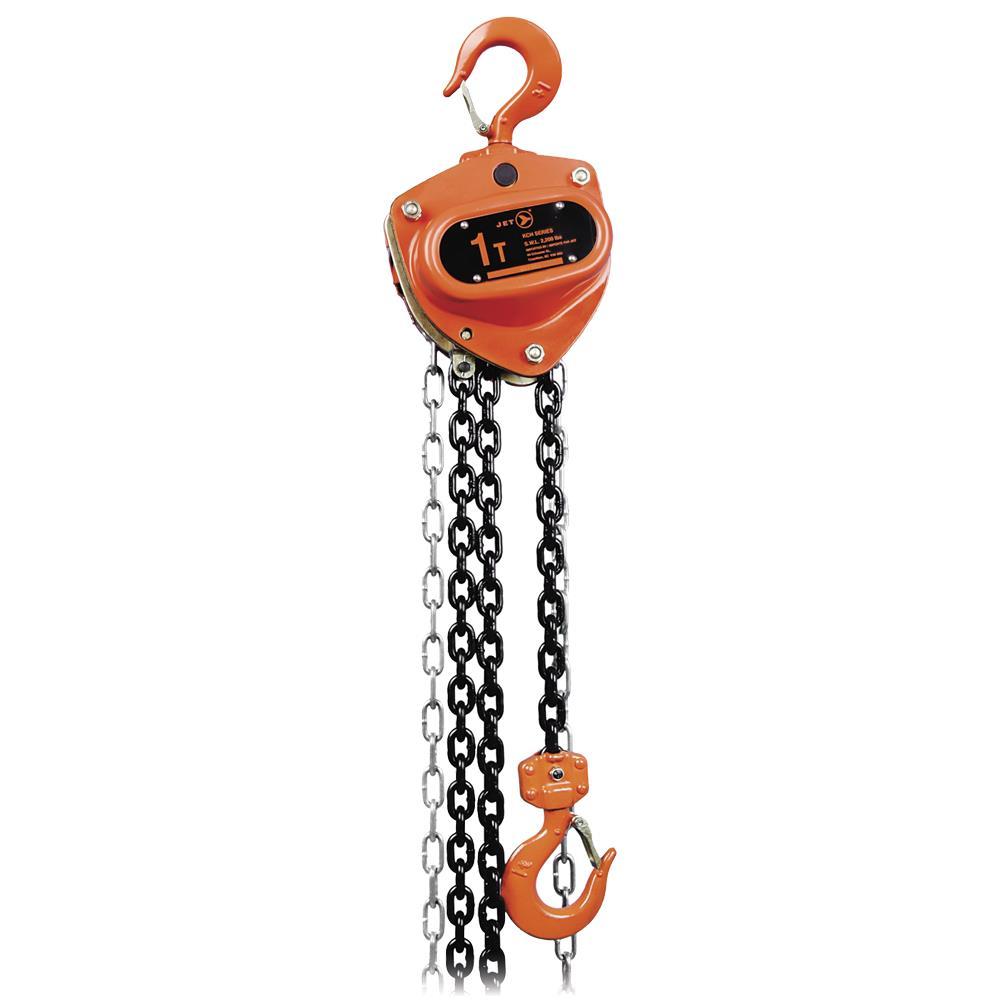

KCH Series Chain Hoists (101102) by Jet - CA
The JET KCH series chain hoists are designed for portability and durability and made to perform in a wide range of industrial lifting and pulling applications.
Downloads
Product Specification
Item #
101102
Dimensions
Height: 7.32"
Width: 8.39"
Additional product details
Vendor Item #
101102
Industrial Category
Material Handling
Industrial Subcategory
Hoists and Trolleys
Industrial Subtype
Air Chain Hoists , Manual Chain Hoists
Brand
JET
Capacity (lb.)
1,100 lb
Capacity (T)
1/2 T
Capacity lb
1,100 lb
Capacity T
1/2 T
Certification
ASME B30.16 standards|ISO 9001-2000 certified factory
Country of Origin
CN
Duty Level
Heavy Duty
Each Depth (in.)
7.32
Each Length (in.)
9.65
Each Qty.
1
Each Weight (lb)
19.8634
Each Width (in.)
8.39
Force Required to Lift
51 lb
Harmonized Tariff Code
8425.19.00.10
Head Room
11-1/4"
HTS (Harmonized Tariff Schedule) Code
8425.19.00.10
Inner Pack Qty.
0
Item Length (inches)
9.65
Item Length inches
9.65
Item Quantity
1
Item Weight (lbs)
19.8634
Item Weight lbs
19.86
Length of Hand Chain Pulled to Lift Load to 1
25'
Length of Hand Chain Pulled to Lift Load to 1'
25'
Lift (ft.)
10'
Lift ft
10'
Load Chain Diameter
5.0 mm
Load Chain Grade
100
Master Pack Qty.
1
Master Pack Weight (lb)
0.0000
Min. Distance Between Hooks
11-1/4"
Model Number
KCH-0510
Number of Falls
1
Number of Safety Hooks
2
Package Quantity
1
Package UPC
10059629823535
Package Weight lbs
0
Quantity
1
Special Features
Non-asbestos brake discs
UOM
EA
UPC
059629823538
UPC Code
059629869314
Manufactured By
Jet - CA


Other Details:
  • Dual pawl Weston style brake with heavy-duty springs provides safe and reliable operation
  • Load tested to 150% of rated capacity and includes certificate
  • Made with premium grade non-asbestos brake discs for long service life
  • Maintenance free sealed bearings provide easy operation
  • Professional grade triple spur gear is lightweight and portable
