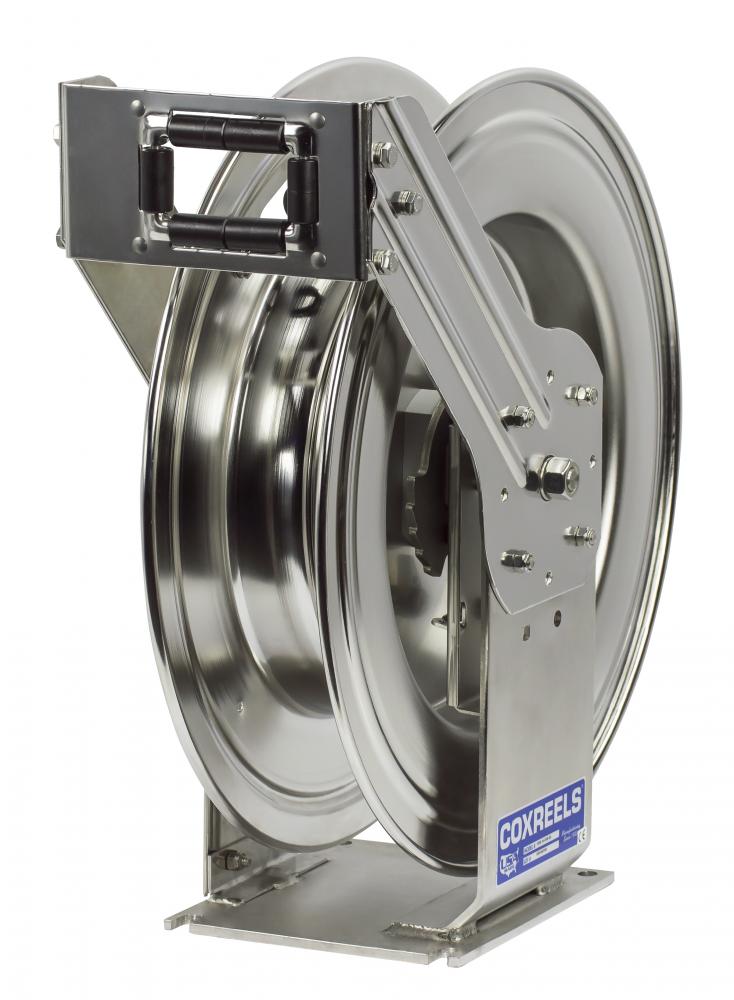

Stainless Steel Spring Driven Hose Reel 3/4inx50ft (TSHL-N-550-SS)
by Coxreels
Coxreels TSHL-N-550-SS Stainless Steel Spring Rewind Hose Reel: 3/4" I.D., 50' hose capacity, less hose, 300 PSI
Product Specification
Item #
TSHL-N-550-SS
Dimensions
Height: 25.50"
Width: 9.88"
Additional product details
Vendor Item #
TSHL-N-550-SS
Industrial Category
Pneumatics
Industrial Subcategory
Hose Reels
Industrial Subtype
Spring Return Hose Reels
Country of Origin
USA
Currency Code
Dollars
Item Length (inches)
24.00
Item Quantity
1
Item Weight (lbs)
70
Ordering Quantity
1
Product Series
T-SS Series
Spec 01
ID: 3/4"
Spec 02
OD: 1-1/16"
Spec 03
Length: 50'
Spec 04
Reel Inlet: 3/4" (F)NPT
Spec 05
N/A
Spec 06
PSI: 300
UPC Number
0674255722125
Manufactured By
Coxreels
Other Details:
- "SS” Electro-polished stainless steel finish
- 1" solid steel axle & lubricated precision bearings for smooth rotation
- 1/4" STEEL BASE - Sturdy dual pedestal design with solid one piece stainless steel base and support post, no weld, for maximum stability. Equipped with Coxreels exclusive super hub™ triple axle support
- Built for rugged mobile applications
- CARTRIDGE MOTOR - Electro-polished stainless steel lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
- CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- Durable proprietary CPC™ powder coat process
- Enclosed factory tuned & matched cartridge-style spring motor
- Guide arm adjusts to wall, floor, vehicle & overhead positions
- Leading 2-year manufacturer's limited warranty
- Made in the U.S.A. - Sold & Supported Worldwide
- MULTI-POSITION GUIDE ARM - Versatile stainless steel guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
- Multi-position lock ratchet mechanism secures hose at desired length
- Non-corrosive external fluid path with machined from high quality stainless steel 90° full-flow NPT swivel inlet
- Non-corrosive stainless steel spring, pawl & zinc plated ratchet
- OTHER FEATURES INCLUDE - Sturdy permanently lubricated precision bearings.
- Professional grade heavy duty steel construction
- Rolled edges & ribbed discs provide strength & safety
- Solid one piece, heavy gauge 1⁄4" steel base & support posts for maximum strength
- Stainless Steel rollers
- Sturdy dual pedestal reel features Coxreels’ exclusive Super Hub™ dual axle support system
- SWIVEL - Non-corrosive external fluid path with machined from high quality stainless steel 90˚ full-flow NPT swivel inlet.
- Swivel Seals: NITRILE Non-Toxic Food Grade Grease
Call for Price
$
0
00
/
/ 1
($0.00 / 1)
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Availability:
- Manufacturer availability unknown.
