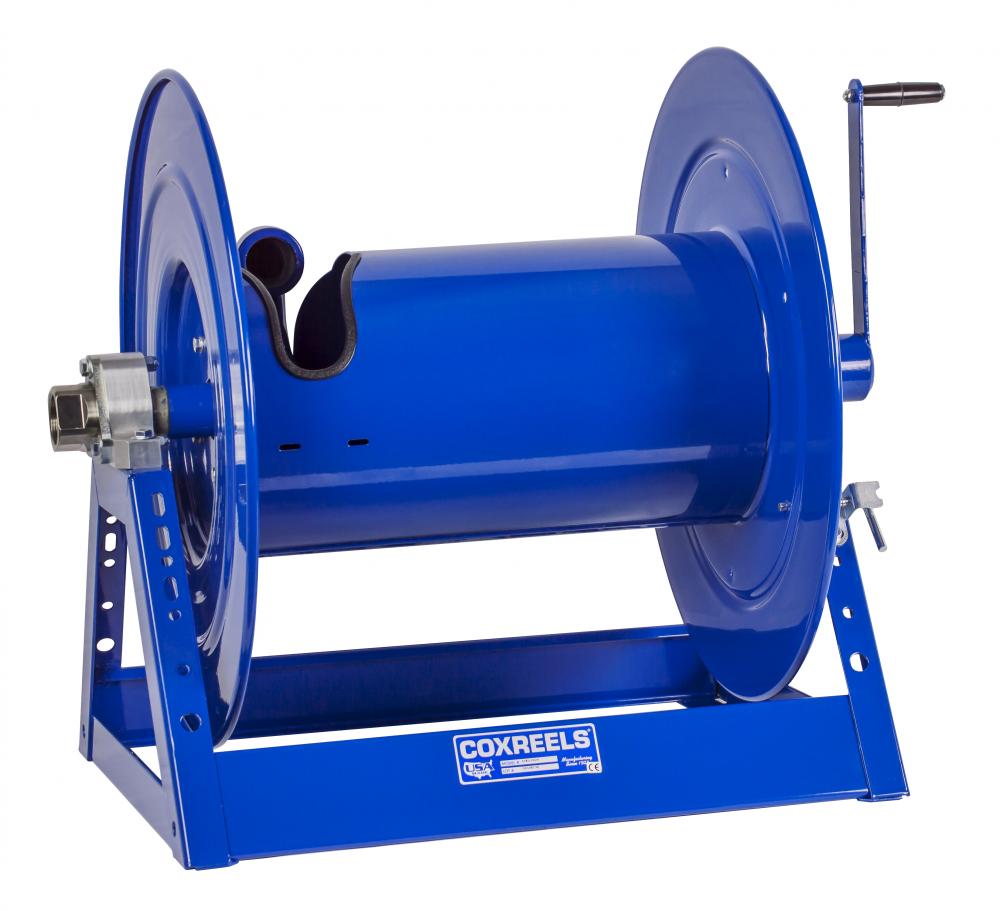

Hand Crank Hose Reel 1-1/2inx100ft 1500PSI no hose (1185-2024)
by Coxreels
Coxreels 1185-2024 Hand Crank Hose Reel: 1 1/2" I.D., 100' hose capacity, less hose, 1500 PSI
Product Specification
Item #
1185-2024
Dimensions
Height: 26.00"
Width: 33.50"
Additional product details
Vendor Item #
1185-2024
Industrial Category
Pneumatics
Industrial Subcategory
Hose Reels
Industrial Subtype
Motor Driven and Hand Crank Hose Reels
Country of Origin
USA
Currency Code
Dollars
Item Length (inches)
24.00
Item Quantity
1
Item Weight (lbs)
94
Ordering Quantity
1
Product Series
1185 Series
Spec 01
ID: 1-1/2"
Spec 02
OD: 2-1/16"
Spec 03
Length: 100'
Spec 04
Reel Inlet: 1-1/2" (F)NPT
Spec 05
N/A
Spec 06
PSI: 1500
UPC Number
0674255833579
Manufactured By
Coxreels
Other Details:
- "A" FRAME - Sturdy one piece, all CNC robotically welded 1/4" steel "A" frame base, not bolted, for superior reel structure. Mounting pattern located in the steel base for easy reel installation and detachment.
- Adjustable tension brake to prevent “free-wheeling” during operation
- All welded steel “A” frame construction for superiorreel structure
- CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.
- Durable proprietary CPC™ powder coat process
- Exclusive low profile outlet riser & open drum slot design for flat smooth hose wrap
- External fluid path with in-line nickel plated steel straight, full flow NPT swivel inlet
- Leading 2-year manufacturer's limited warranty
- Long-handled locking pin to secure reel from rotation during transport or storage
- Made in the U.S.A. - Sold & Supported Worldwide
- OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, long handled locking pin to secure reel, and direct hand crank for easy mechanical retraction.
- OUTLET RISER - Exclusive low profile outlet riser and open drum slot design provides a non-cimping, flat smooth hose wrap.
- PERMANENT LUBRICATED BEARINGS - Robust lubricated horizontal surface mount bearings for easy rotation.
- Professional grade heavy duty steel construction
- Robust lubricated horizontal surface mount bearings for easy rotation
- Rolled edges & ribbed discs provide strength & safety
- Solid steel direct hand crank with smooth round handle
- SWIVEL - In-line electroless nickel plated steel full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
- Swivel Seals: NITRILE
