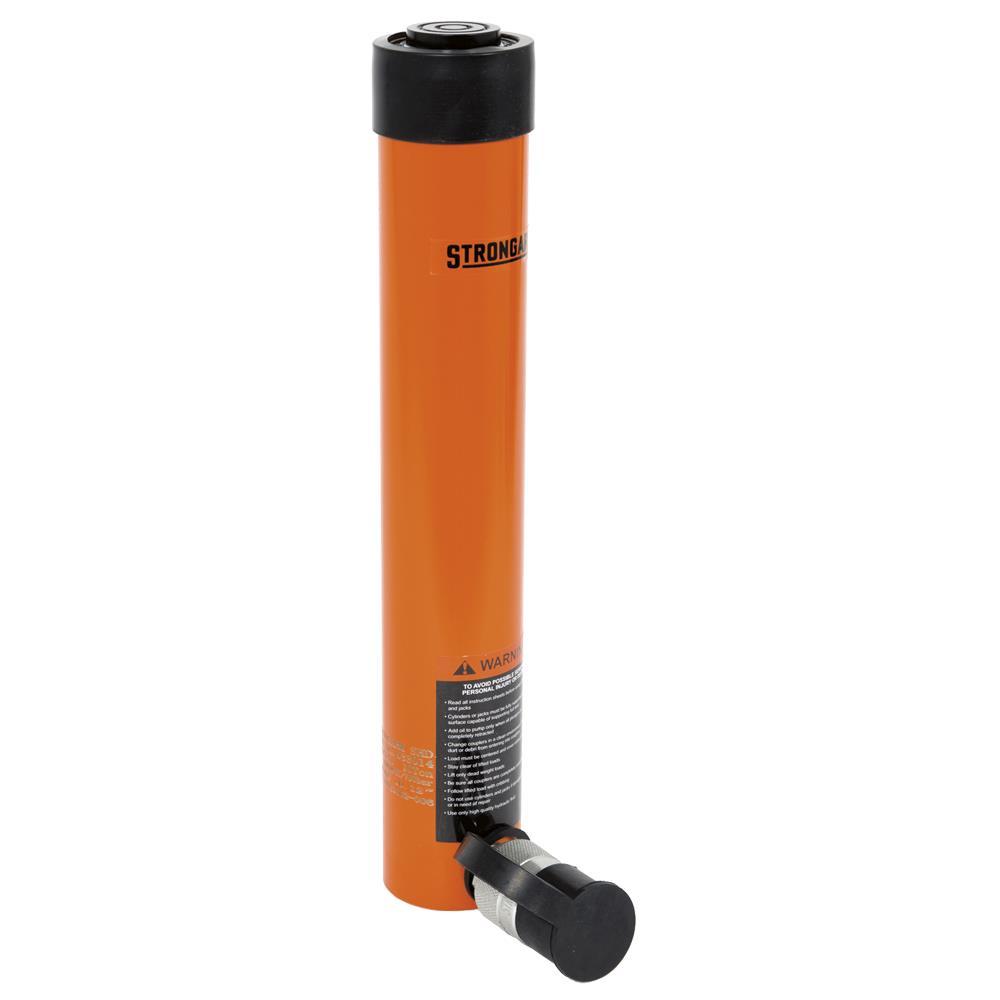

Single Acting Cylinders

Single Acting Cylinders

Call For Price
  • Part Number: 033014
  • UPC:
  • Availability: Call for availability

Info & Guides

PDF
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
These general-purpose rams attach to a hydraulic pump and will lift heavy loads with minimal effort.
Specifications
Details
Industrial Category:
Hydraulics
Industrial Subcategory:
Hydraulic System Components
Industrial Subtype:
High Pressure Hydraulic Cylinders
Base Fixturing Holes - Bolt Circle (U):
1.54"
Base Fixturing Holes - Thread (V):
5/16"-18UNC
Base Fixturing Holes - Thread Depth (Z):
0.47"
Brand:
Strongarm
Capacity @ 700 Bar (10,000 PSI):
10T
Collapsed Height (A):
13.74"
Collar Thread (C):
2-1/4" - 14
Collar Thread Length (X):
1.02"
Country of Origin:
CN
Duty Level:
Super Heavy Duty
Each Qty.:
1
Effective Area:
2.25 in²
Extended Height (B):
23.86"
Harmonized Tariff Code:
8412.21.00.90
HTS (Harmonized Tariff Schedule) Code:
8302.49.00.90
Inner Pack Qty.:
0
Item Height (inches):
3.65
Item Length (inches):
15.80
Item Quantity:
1
Item Weight (lbs):
13.1300
Item Width (inches):
6.45
Master Pack Code:
10059629998141
Model Number:
SACS1010
Oil Capacity:
22,73 in³
Ordering Quantity:
1
Outside Diameter (D):
2.25"
Package Quantity:
1
Package UPC:
10059629998523
Piston Internal Thread (O):
1"-8UNC
Piston Rod Diameter (F):
1.50"
Piston Thread Length (P):
0.75"
Quantity:
1
Rated Capacity:
10 T
Spring Return:
Yes
Stroke Length:
10.12"
UPC:
059629998526
UPC Code:
059629998144
UPC Number:
059629998144
Other Details
Baked-on enamel finish provides increased corrosion resistance
Built with a heavy-duty plunger spring return
Features collar threads, plunger threads, and base mounting holes for optional fixture attachments
Made of high-strength alloy steel for maximum durability
Professional grade 3/8”-18 NPT quick coupling
